Lifting Columns

Electric lifting columns provide controlled vertical movement inside adjustable furniture. Compare stroke, installed height, load rating and travel speed for each NATE model. A column is one part of a system: its mechanical mounting, control box, power supply and operating conditions must be checked together.

23 matching products

AD-VA2 View product

AD-VA2

AD-VA2

Load Capacity: 2000N | Stroke: 480mm | Height: 640-1120mm | Speed: 15mm/s

  • Travel speed: 15 mm/s
AD-VA3 View product

AD-VA3

AD-VA3

Load Capacity: 2000N | Stroke: 360mm | Height: 400-760mm | Speed: 10mm/s

  • Travel speed: 10 mm/s

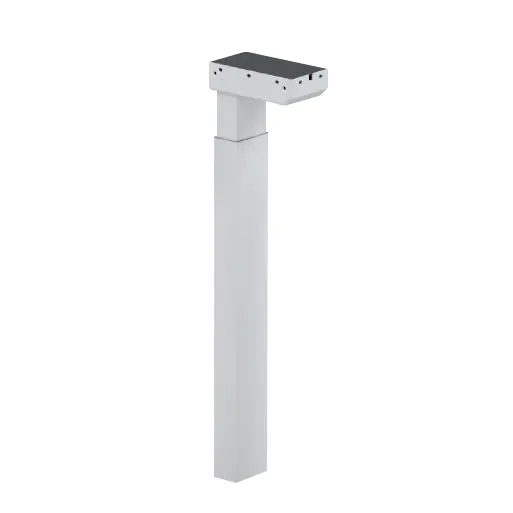

AF2 View product

AF2

AF2

Load Capacity: 800N | Stroke: 500mm | Height: 665-1165mm | Speed: 30mm/s

  • Travel speed: 30 mm/s

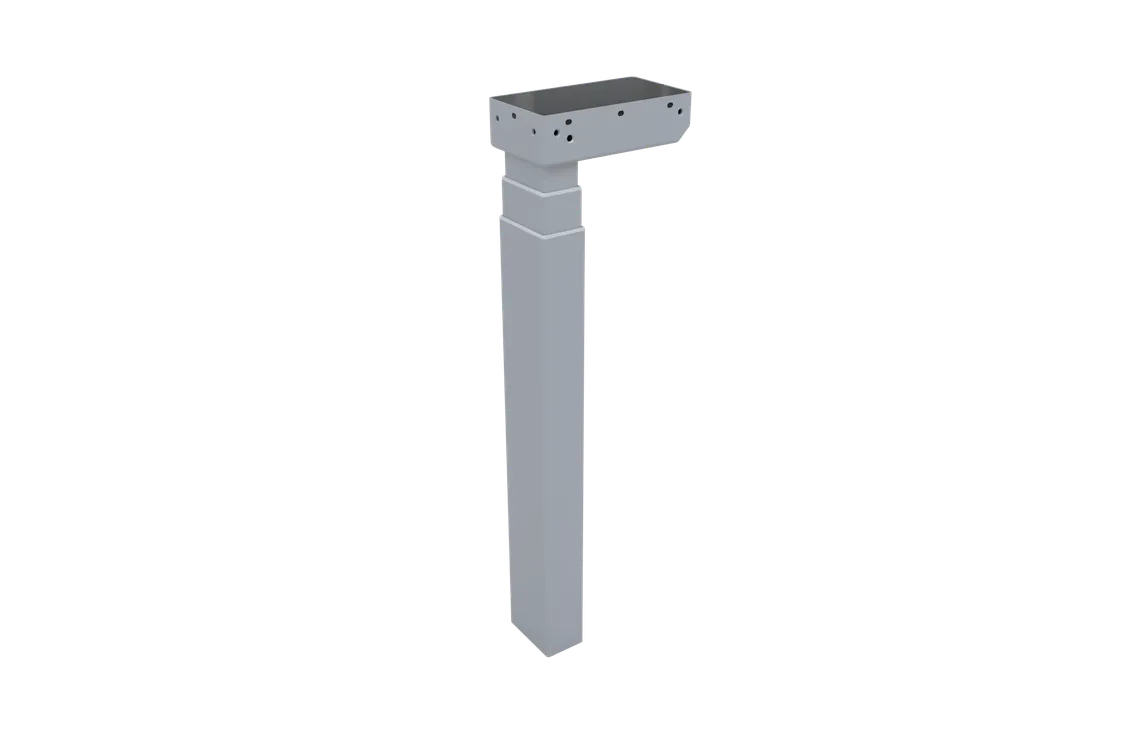

AF3 View product

AF3

AF3

Load Capacity: 800N | Stroke: 650mm | Height: 565-1215mm | Speed: 40mm/s

  • Travel speed: 40 mm/s

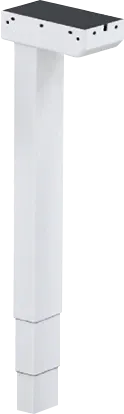

ARF3 View product

ARF3

ARF3

Load Capacity: 800N | Stroke: 650mm | Height: 565-1215mm | Speed: 40mm/s

  • Travel speed: 40 mm/s

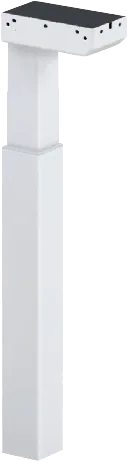

BF2 View product

BF2

BF2

Load Capacity: 800N | Stroke: 500mm | Height: 665-1165mm | Speed: 30mm/s

  • Travel speed: 30 mm/s

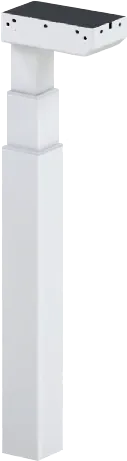

BF3 View product

BF3

BF3

Load Capacity: 800N | Stroke: 650mm | Height: 565-1215mm | Speed: 40mm/s

  • Travel speed: 40 mm/s

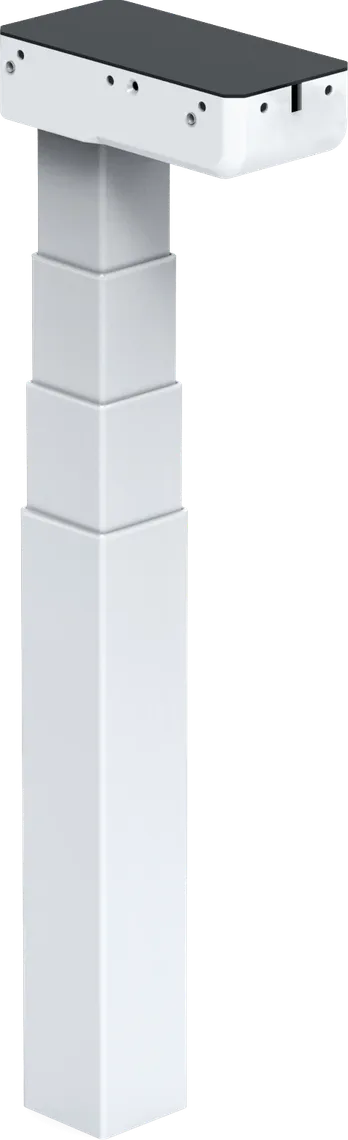

BF4 View product

BF4

BF4

Load Capacity: 800N | Stroke: 680mm | Height: 490-1170mm | Speed: 50mm/s

  • Travel speed: 50 mm/s

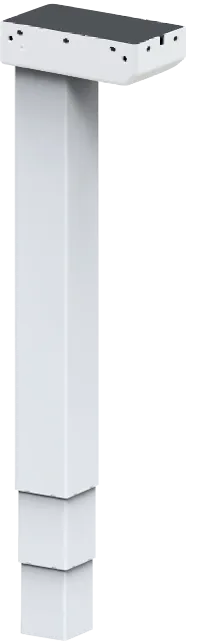

BRF3 View product

BRF3

BRF3

Load Capacity: 800N | Stroke: 650mm | Height: 565-1215mm | Speed: 40mm/s

  • Travel speed: 40 mm/s

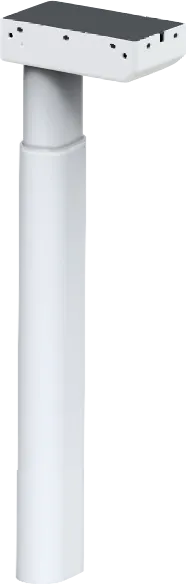

CF2 View product

CF2

CF2

Load Capacity: 800N | Stroke: 500mm | Height: 665-1165mm | Speed: 30mm/s

  • Travel speed: 30 mm/s

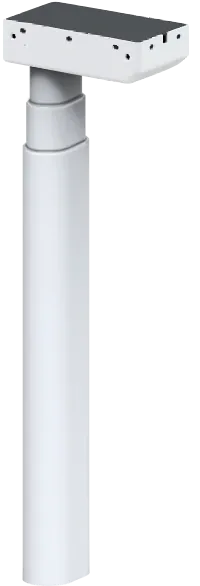

CF3 View product

CF3

CF3

Load Capacity: 800N | Stroke: 650mm | Height: 600-1250mm | Speed: 40mm/s

  • Travel speed: 40 mm/s

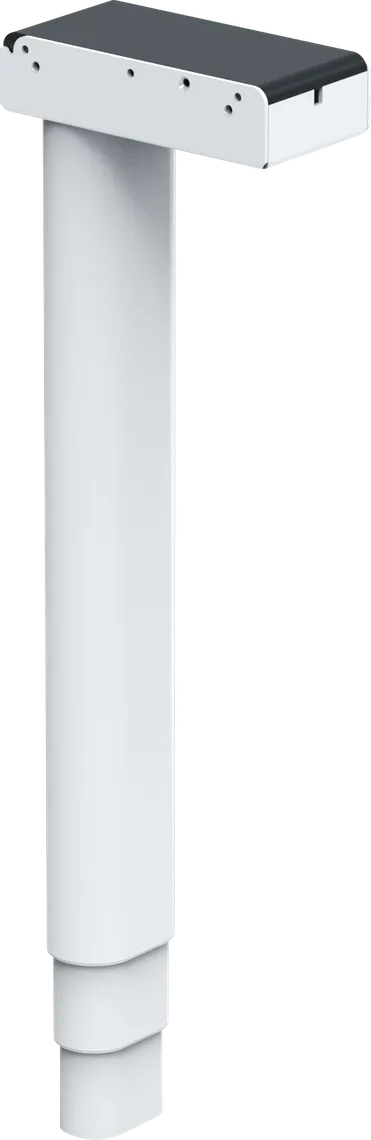

CRF3 View product

CRF3

CRF3

Load Capacity: 800N | Stroke: 650mm | Height: 600-1250mm | Speed: 40mm/s

  • Travel speed: 40 mm/s

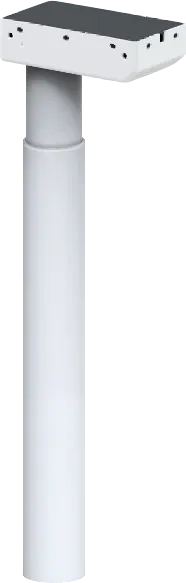

DF2 View product

DF2

DF2

Load Capacity: 800N | Stroke: 500mm | Height: 665-1165mm | Speed: 30mm/s

  • Travel speed: 30 mm/s
DF3 View product

DF3

DF3

Load Capacity: 800N | Stroke: 650mm | Height: 600-1250mm | Speed: 40mm/s

  • Travel speed: 40 mm/s
DRF3 View product

DRF3

DRF3

Load Capacity: 800N | Stroke: 650mm | Height: 600-1250mm | Speed: 40mm/s

  • Travel speed: 40 mm/s

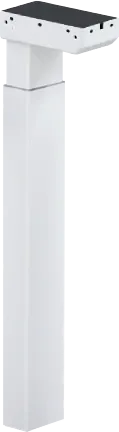

HF2 View product

HF2

HF2

Load Capacity: 800N | Stroke: 500mm | Height: 665-1165mm | Speed: 50mm/s

  • Travel speed: 50 mm/s

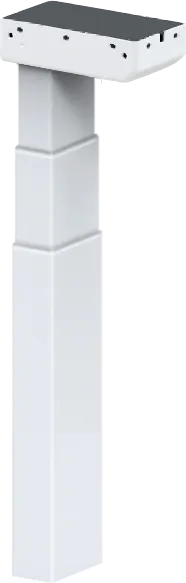

HF3A PRO View product

HF3A PRO

HF3A PRO

Load Capacity: 800N | Stroke: 650mm | Height: 600-1250mm | Speed: 80mm/s

  • Travel speed: 80 mm/s
HRF3A View product

HRF3A

HRF3A

Load Capacity: 800N | Stroke: 650mm | Height: 565-1215mm | Speed: 40mm/s

  • Travel speed: 40 mm/s
NF2 View product

NF2

NF2

Load Capacity: 1500N | Stroke: 455mm | Height: 695-1150mm | Speed: 8mm/s

  • Travel speed: 8 mm/s
RK-BHF3 View product

RK-BHF3

RK-BHF3

Load Capacity: 600N | Stroke: 630mm | Height: 620-1250mm | Speed: 30mm/s

  • Travel speed: 30 mm/s
TDIF3 View product

TDIF3

TDIF3

Load Capacity: 800N | Stroke: 650mm | Height: 600-1250mm | Speed: 40mm/s

  • Travel speed: 40 mm/s
WM-2I1 View product

WM-2I1

WM-2I1

Load Capacity: 800N | Stroke: 500mm | Height: 290-790mm | Speed: 25mm/s

  • Travel speed: 25 mm/s
WM-2SA1 View product

WM-2SA1

WM-2SA1

Load Capacity: 600N | Stroke: 500mm | Height: 263-763mm | Speed: 20mm/s

  • Travel speed: 20 mm/s

Compare column ratings as part of the system

Column stroke describes travel; installed height describes the physical height at each position. Compare both with the furniture mounting points. NATE column load ratings are listed in newtons, while complete frame ratings may use kilograms; these are different specifications and should not be substituted. Review travel speed, controls and operating conditions with the selected model. Request its mounting drawing before designing the surrounding structure.

Compare complete desk frames · Review control boxes
